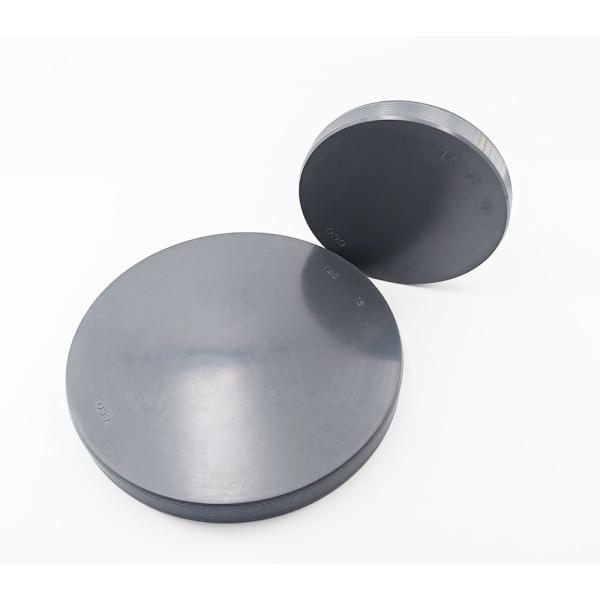

Metal Skeleton Oil Seal EC End Cap Oil Seals Nitrile Rubber Outer Diameter 8 - 230
The EC-type oil seal features a composite skeleton structure with an inner and outer layer. The metal skeleton is wrapped in oil-resistant rubber on the outer layer, while the inner layer is tightly vulcanized with the rubber, forming a high-strength sealing base. The main sealing lip is integrated with a spiral spring, which generates a stable radial force, ensuring a tight seal even if the shaft has slight runout.
Standard nitrile rubber (NBR) is used, with an operating temperature range of -25°C to 100°C, and compatibility with mineral-based lubricants exceeding 98%. The single-lip design, combined with an optimized lip angle, delivers excellent sealing efficiency under medium to low-speed rotation conditions (≤1500 r/min). During installation, the inner bore locating step enables quick alignment, making it suitable for general machinery such as motor bearings and gearboxes, providing an economical and reliable sealing solution for equipment.
In the field of oil seal production, we have always placed quality first. Over the years, we have established a comprehensive quality control system, with strict standards in place at every stage of the process, from raw material selection to finished product shipment.
In terms of raw materials, we collaborate with reputable suppliers to ensure reliable quality from the source. During production, we emphasize standardized operations at every stage and maintain production stability through effective management mechanisms.
We are committed to providing reliable oil seal products to the market through rigorous quality control. By adhering to our commitment to quality, our products perform consistently across various applications, earning the recognition and trust of many customers and laying the foundation for long-term partnerships.
Characteristics
1. Waterproof
2. Oil resistant
3. Friction resistant
4. Highly efficient sealing
5. A metal skeleton coated with rubber
Specification
| No. | SPECIFICATION | No. | SPECIFICATION |
| 1 | 8*5 | 40 | 35*6 |
| 2 | 10*4 | ... | ... |
| 3 | 12*4 | 90 | 75*7 |
| 4 | 12*5 | 91 | 75*9 |
| 5 | 12*7 | 92 | 75*10 |
| 6 | 14*4 | 93 | 75*12 |
| 7 | 15*4 | 94 | 80*7 |
| 8 | 16*4 | 95 | 80*8 |
| 9 | 16*5 | ... | ... |
| ... | ... | 132 | 180*12 |
| 35 | 32*5 | 133 | 180*15 |
| 36 | 32*6 | 134 | 190*12 |
| 37 | 32*7 | 135 | 200*13 |
| 38 | 32*8 | 136 | 210*12 |
| 39 | 35*5 | 137 | 230*14 |
Photos
Package
Paper bag + carton
About Our Company
| Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals. The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable. |
